SMT Assembly
Three assembly lines: One full automatic, one semi-automatic and one prototype SMD line, with total capacity listed at 47K CPH.
Founded by
Mr. Manoj Parab
Founder & Owner · Ujjwal Electronics
Under the leadership of Mr. Manoj Parab, Ujjwal Electronics provides expertise in printed circuit board assembly, development support, and low- to high-volume electronic manufacturing solutions.
Explore our manufacturing facility, advanced equipment, PCB assembly processes, and production capabilities.
Established in 2016 by Mr. Manoj Parab.
Assembly Processes
Total factory area in sq.ft.
Component per hour varies on sizes.
Staff and operators listed in the profile.
Provided technical support to the K. J. Somaiya Institute of Technology team in the assembly and testing of electronic printed circuit boards (PCBs) for Somaiya BeliefSat-0, which was successfully launched aboard PSLV-C58 as part of the XPoSat mission on January 1, 2024.
The profile covers assembly, testing, inspection and additional processes across PCB manufacturing workflows.
Three assembly lines: One full automatic, one semi-automatic and one prototype SMD line, with total capacity listed at 47K CPH.
Prototype Development PCB BGA IC assembly with stencil support.
Single, double, multilayer and flex PCB process support, with clean/no-clean and ROHS/leaded options.
Testing support, visual inspection and an SRT rework station are part of the stated process.
Two ESD and Lux-compliance lines with customized of Through hole component insertion capacity assembly line with jigs and fixtures EPS wave soldering machine.
Coating, potting and hot plate soldering are listed among the other processes.
A separate 200 sq.ft training hall for on-job and classroom training.
Rework support for component replacement and assembly correction based on approved instructions.

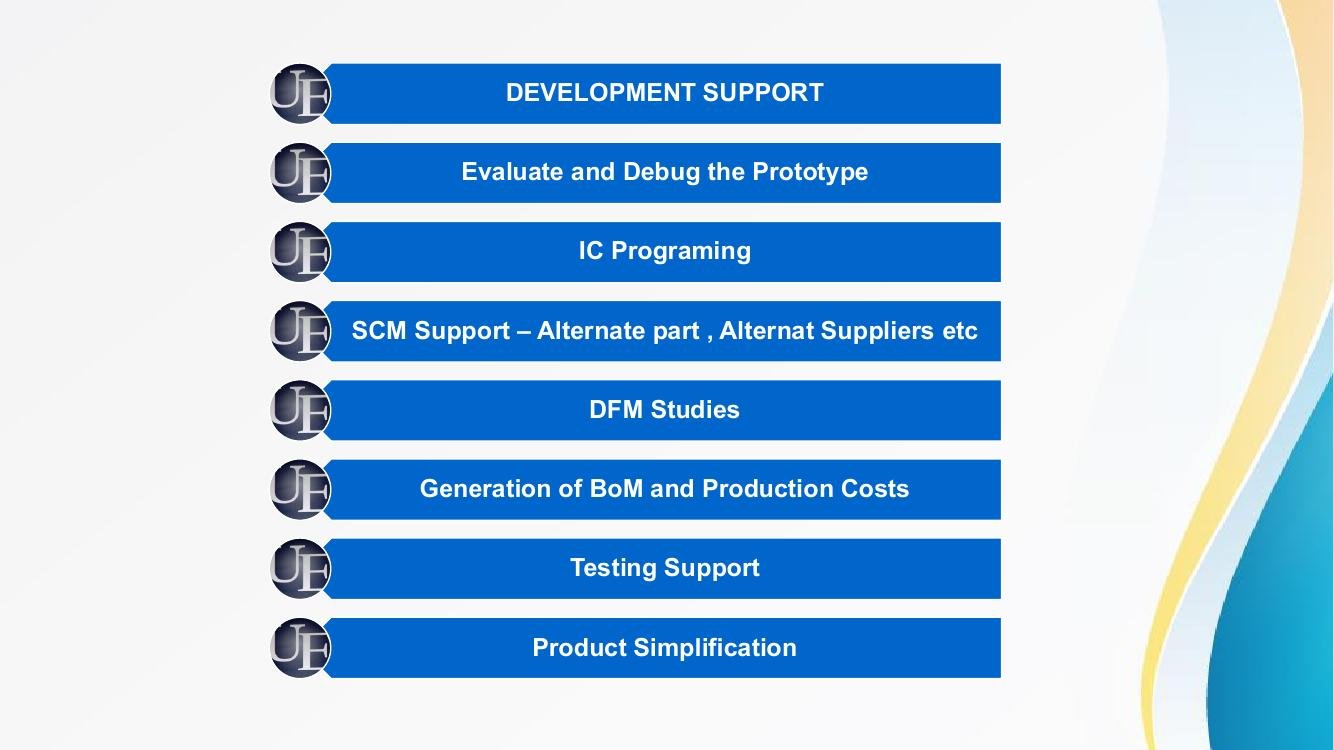

Ujjwal Electronics’ profile describes support from prototype evaluation through production preparation and testing.
Send Gerber files, BOM, assembly drawings, quantity and target timeline.
Review component locations, footprints, special instructions and assembly requirements.
Carry out the agreed assembly process and applicable inspection or testing.
Review agreed acceptance criteria, pack the boards and coordinate delivery.
Equipment and capabilities presented in the source profile are highlighted below.
The source profile identifies an automatic loader-unloader with programming feature and an A5 printer.
The profile lists JUKI RS-1R and JUKI KE-750 pick-and-place equipment.
Listed specifications include 47,000 CPH, BGA/CSP capability, 8 heads with vision camera and 112 feeder bank.
Equipped for high-volume through-hole assembly with wave soldering. Complete assembly under one roof!
The company vision emphasizes customer and stakeholder centricity, superior customer service, innovation, quality and delivery, with an ambition to become a trusted electronics company in India.
For manufacturing, assembly, development support or capability discussions, contact Ujjwal Electronics in Narhe, Pune.
Sr. No. 50/10, near Deshpande Garden, beside Deepak Snacks, Narhe, Pune-41
